2016 TC Wagon Roof Water Intrusion

Recommended Posts

2016 Transit Connect LWB Wagon



For a few weeks I would notice drops of water on my dash as I would leave my home of residence. I thought nothing of it as if it were maybe condensation or something minor. Well, today we had heavy downpour rain in our area and when I got in my van and put it in reverse, water literally poured out from between my headliner and windshield INSIDE my van (Above the rearview mirror). Must have been at least 4-6 ounces all spilled down onto my dash and all over my center dash controls. The headliner is also soaking wet. Has anyone had a similar problem? I saw some stuff online talking about the sirius fm antenna or radio pod on the roof leaking on older f150's and ford escapes. I dont see any official recalls online. Has anyone experienced similar issues? My vehicle was manufactured in 2/16 and I am under 36K so literally my warranty expires this month. I have to get over to the dealer asap, hopefully they will help me out.





Edited by r1alvin

Share this post


Link to post
Share on other sites


If its not a leaking roof rail (or plug if you do not have the rails), or the radio antenna, it may be the windshield....



In this post: https://fordtransitconnectforum.com/topic/7409-water-on-passenger-footwell/



On 1/21/2019 at 6:58 PM, Thom said:

My 2016 cargo van XL just had the windshield removed and resealed. The dealership’s “glass guy”, I think Safelight, said there were as many gaps as there were sealed areas along the top and that he has done others with the same problem. Mine has les than 30k miles. I had previously changed the roof mounted antenna base with no success. The dome light area would fill up with water then spill out onto the dash when I drove and hit the brakes. Maybe yours leaks in the same area but finds a different path to the floor? Mine wouldn’t leak while driving in the rain because of airflow over the windshield/roof, only when parked. Pop the dome light out before the next rain, stuff a rag in there and see if it’s wet afterwards. Good luck.













Share this post


Link to post
Share on other sites

Man thats terrible , let us know how they handle it .  Lets hope it's not a "  Let me get some rags to help you dry it up" kind of response and then sending you on your way .

Share this post


Link to post
Share on other sites

@r1alvin - where have you been stranger? Miss seeing your build and adventure videos.

Sorry to hear about your water leak. Crap!

I believe the clock on your warranty starts when you take delivery at the dealer, not when the vehicle was made.

You should have a few extra months wiggle room but obviously you want to get this problem correctly quickly.

Please keep us posted and good luck!

Share this post


Link to post
Share on other sites
3 hours ago, r1alvin said:

2016 Transit Connect LWB Wagon



 I saw some stuff online talking about the sirius fm antenna or radio pod on the roof leaking on older f150's and ford escapes.









A common roof leak with F-150's, for the last few generations, was the 3rd brake light, or high mount stop lamp.  The fix for that was a revised part with a better gasket.  On mine, there were stress fractures where the lamp's mounting screws were.  That could have been me with a heavy hand torquing down on the screws, or simply heat expansion against the screws.  We will never know.  My solution was to replace the lamp.  There are aftermarket gaskets for those lamps.

IMG_20190206_110444343.thumb.jpg.42a5e27bfbb483f02b66b1c4b9e3bc94.jpgIMG_20190206_110434107.thumb.jpg.fce21335694f4a3870ed4f30e18f944a.jpgIMG_20190206_111117705.thumb.jpg.f4d47ed9e090975e21c22b3cb986c663.jpg




MOFORKIT 3rd Third Brake Light Seal Gasket Compatible with Ford F150 2009 to 2014
Save 10% with coupon
 FREE delivery by Thu, Feb 21


MOFORKIT 3rd Third Brake Light Seal Gasket Compatible with Ford F150 1997 to 2003, F250 1997 to 1999
 | FREE One-Day. FREE delivery by Tomorrow, Feb 20 on qualifying orders over $35

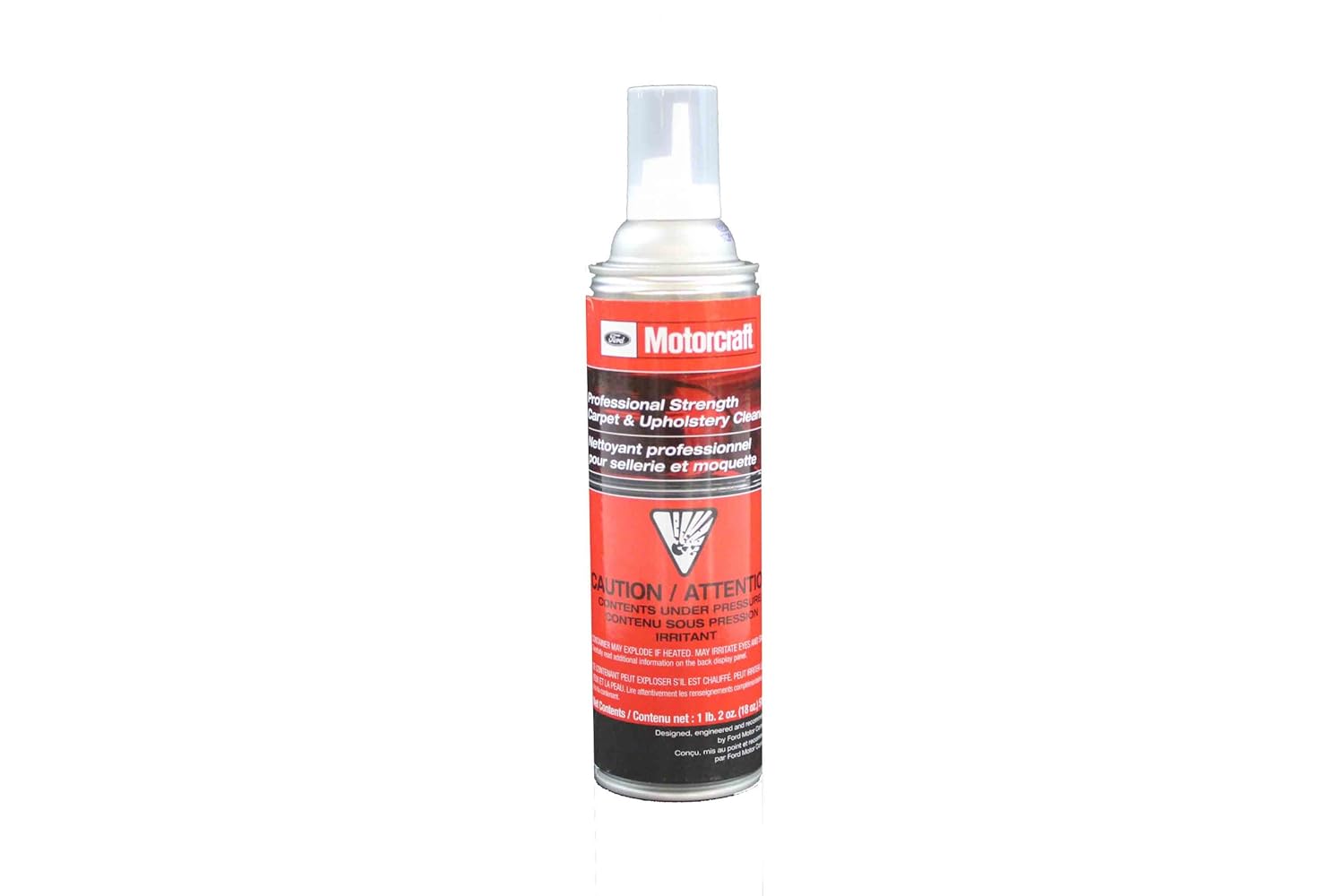

Ford has a cleaner to be used for the headliner which removes those water stains left behind from roof leaks.




The Transit Connect may leak from the antenna, the holes used for mounting roof rails, and the 3rd brake light.  On my lift gate wagon, there are also 2 rubber wire looms.  You, or your dealer, may have to remove the headliner to look for the leak.

Image result for transit connect antennaRelated image61R1rr4jW4L._SL1500_.jpg

G014545510.gif?s=7591&k=d15a314306800aa0db7738f9040e9843

Image result for transit connect rubber wire loom







Share this post


Link to post
Share on other sites

My rain groove rack plugs leaked after removing them once for vinyl wrapping.



Put some silicone under the plugs.

Share this post


Link to post
Share on other sites

Thanks for all the input guys! I just dropped my Van off at Ford. They will have it for several days to investigate the leak. I had them check my warranty and I lucked out because it expires this coming July. I'll keep you guys updated on the findings. I do not have any roof rails on my van and everything on the roof is completely stock. When I bought it, it had 10k miles on it so I'm not sure if the windshield had been previously replaced or not. Hopefully its nothing major!

Share this post


Link to post
Share on other sites

I don't have the roof rack either, just the plugs for the bolt holes.

Share this post


Link to post
Share on other sites

Quick update- just got off the phone with the service manager-They water intrusion was determined to be coming from the body plugs in the roof.  He said that the replacement plugs fit with a better seal to prevent this from happening (Hopefully). Unfortunately, they could only fulfill a partial order of plugs as they are now on back order so they are installing the front 2 and taping off the remaining until the back order comes in at which point I'll have to return for a second visit.

Share this post


Link to post
Share on other sites

Edit/ I am not getting my vehicle back today. This is kind of ridiculous. All of the plugs are claimed to be in the end of this week. Ford should have at least provided me a rental when I dropped the van off but they did not even bother.

Share this post


Link to post
Share on other sites

Did you ask for a rental , if not thats probably why they didn't offer it .  I ordered a part a while back , they told me it was on backorder ,  it took 6 weeks to come in .

Share this post


Link to post
Share on other sites

Nope. If I would have known it was going to be a 2 week+ long affair I would have. I don't like to pester service people because I work in the service industry myself, so I trusted that Ford would make this a priority since its a warranty repair and a fairly major one considering the water damage being out in the open environment. Lesson learned.

Edited by r1alvin

Share this post


Link to post
Share on other sites

The wrap shop removed mine and offered to order me a new set as they saw that the plugs will not be watertight when reinstalled. I said screw this, I'll fit them myself. Took me 10 minutes to fix the plugs with some silicone. Been fine since.

Share this post


Link to post
Share on other sites
4 hours ago, herb said:

Did you ask for a rental , if not thats probably why they didn't offer it .





My van is in the dealership at present.  Service Writer offered a rental.  I didn't need it, so I declined.  I guess it depends on the level of customer service offered by the Service Writer standing in front of you.

Share this post


Link to post
Share on other sites

This thread has me thinking about pulling mine out and silicone them back in....  That way I know they won't leak...

Share this post


Link to post
Share on other sites

When I installed roof rails in my 2016 the plugs did not come out easily.A few broke in half.I think they are one time use and would not remove them unless I had replacements.

Share this post


Link to post
Share on other sites
7 hours ago, davidparker said:

This thread has me thinking about pulling mine out and silicone them back in....  That way I know they won't leak...



7 hours ago, JackGrimshaw said:

When I installed roof rails in my 2016 the plugs did not come out easily.A few broke in half.I think they are one time use and would not remove them unless I had replacements.



Exactly. Dont remove them unless absolutely necessary.
