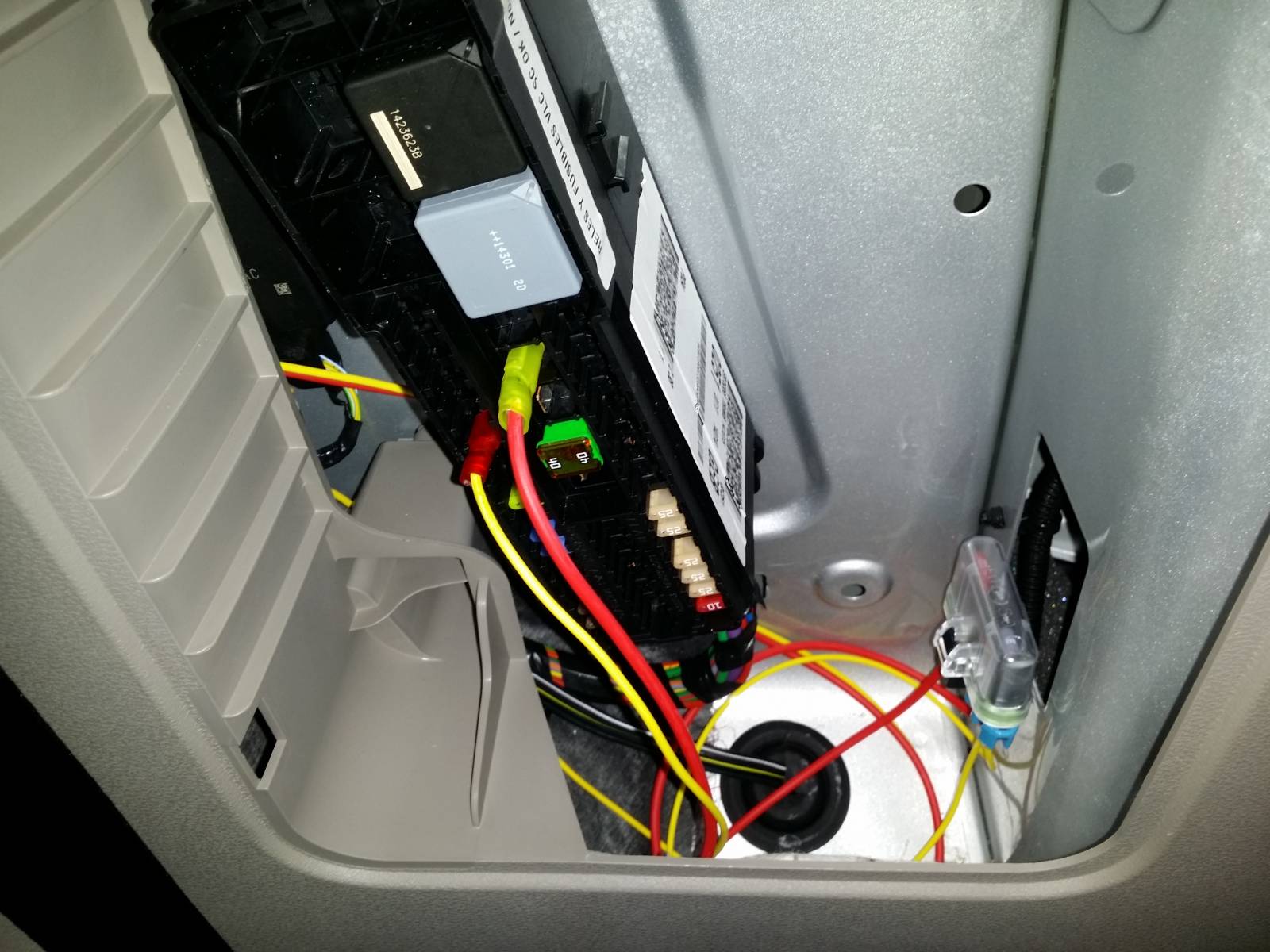

Initial position in which fuse holder was installed.
Red 12ga wire connected to F27 for constantly on power
Yellow 18ga wire connected to F41 for switched power to trigger relay
