Accessory FuzeBlock 5

DonShockley

By DonShockley

 Share

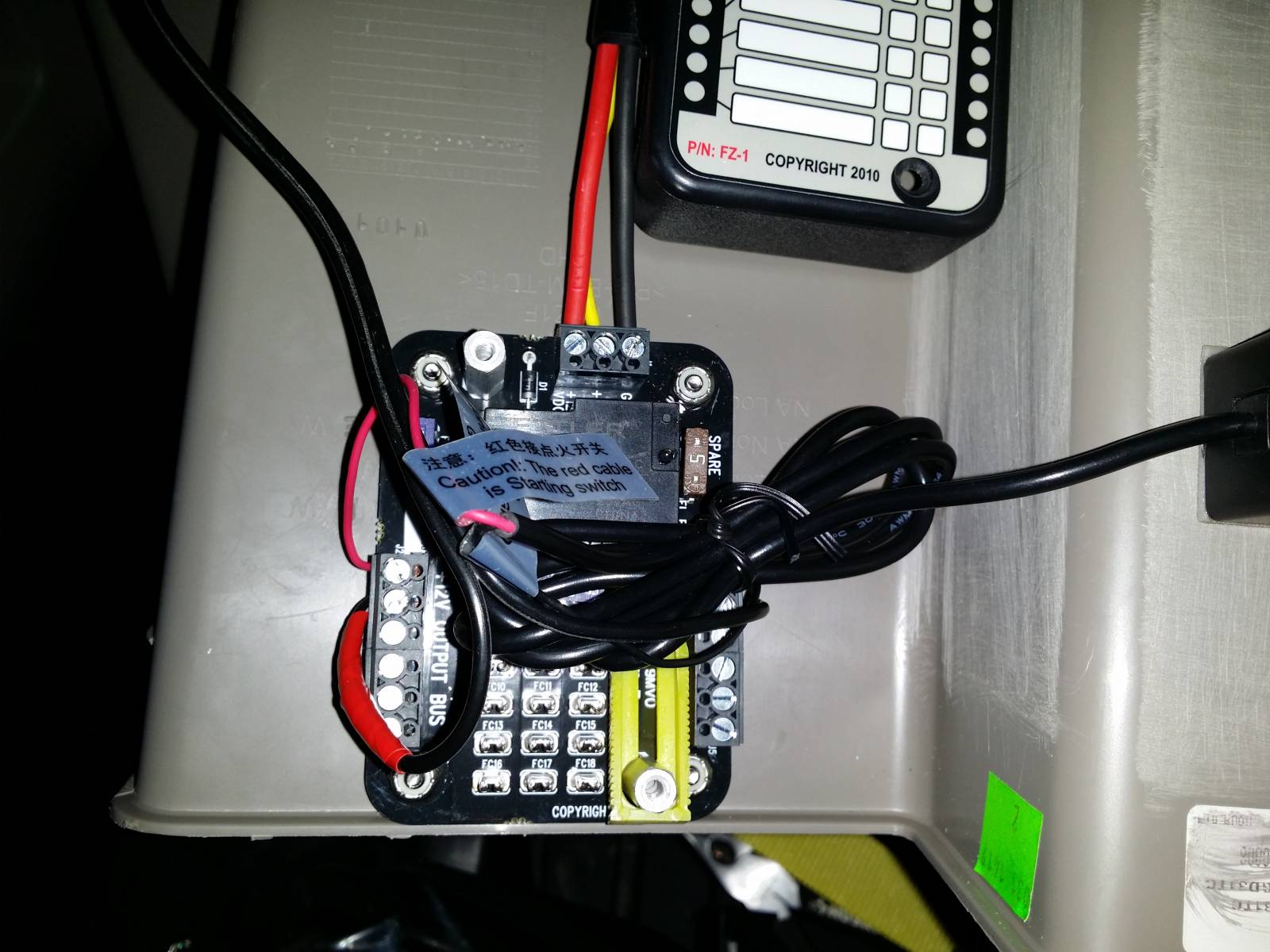

Closeup of FZ-1 FuzeBlock accessory panel with supply and accessory wiring installed.
Relay provides switched power when fuses are installed between center and right connectors.
Installing fuses between center and left connectors provides constant power to circuit.

From the album:

2015 TC LWB Wagon Modifications

  • 54 images
  • 0 comments
  • 0 image comments

Photo Information for Accessory FuzeBlock 5

Taken with SAMSUNG SAMSUNG-SM-N900A

  • 4.1 mm
  • 1/85
  • f f/2.2
  • ISO 50
