Accessory FuzeBlock 1


DonShockley
 Share

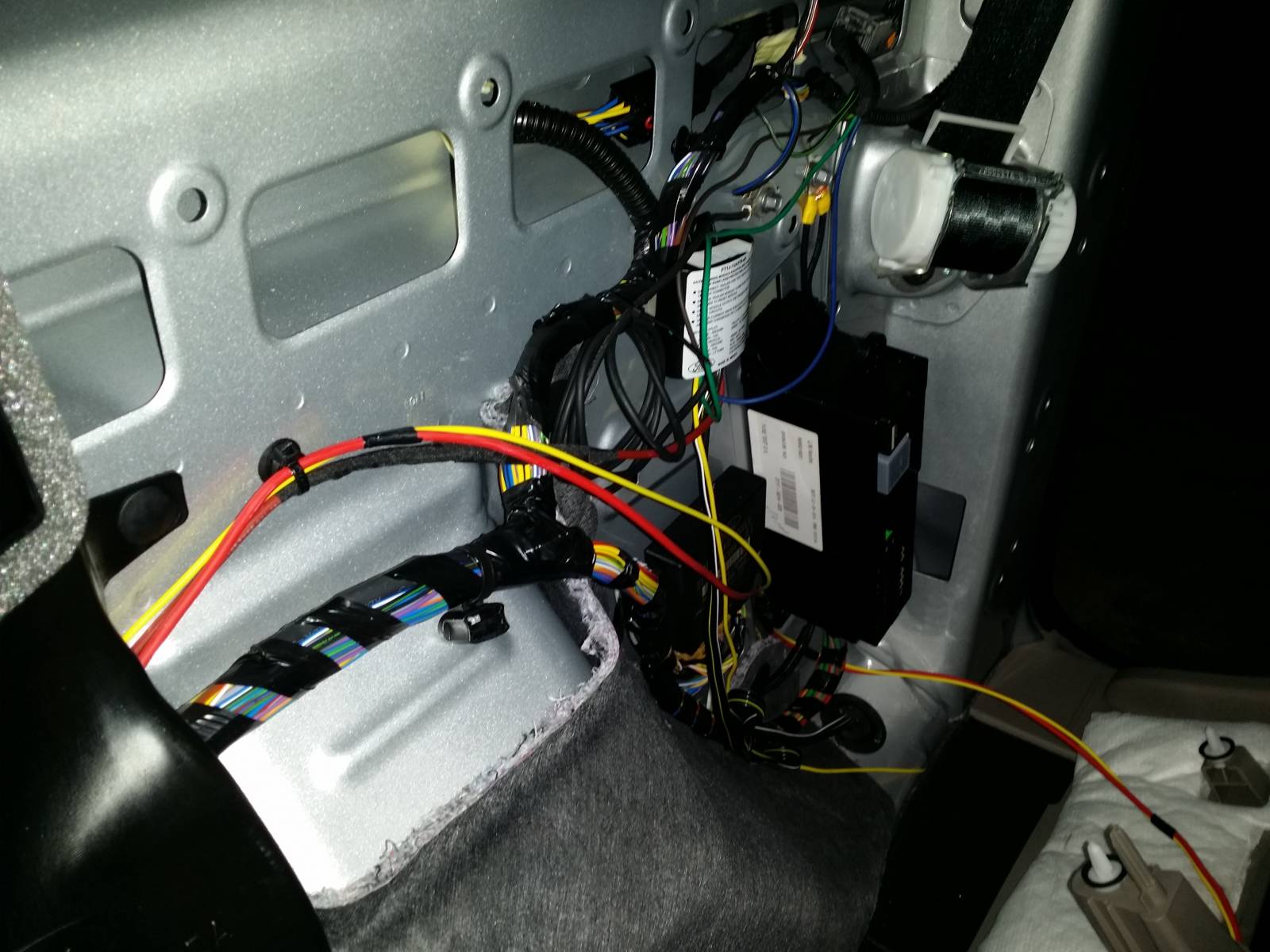

Rear section under right rear cargo area trim panel.
Red and Yellow wires connect FZ-1 FuzeBlock accessory panel in front to cargo area fuse panel.
Red spliced wire is for dealer installed trailer wiring box just above fuse box.
