Bed 16


bobs
 Share

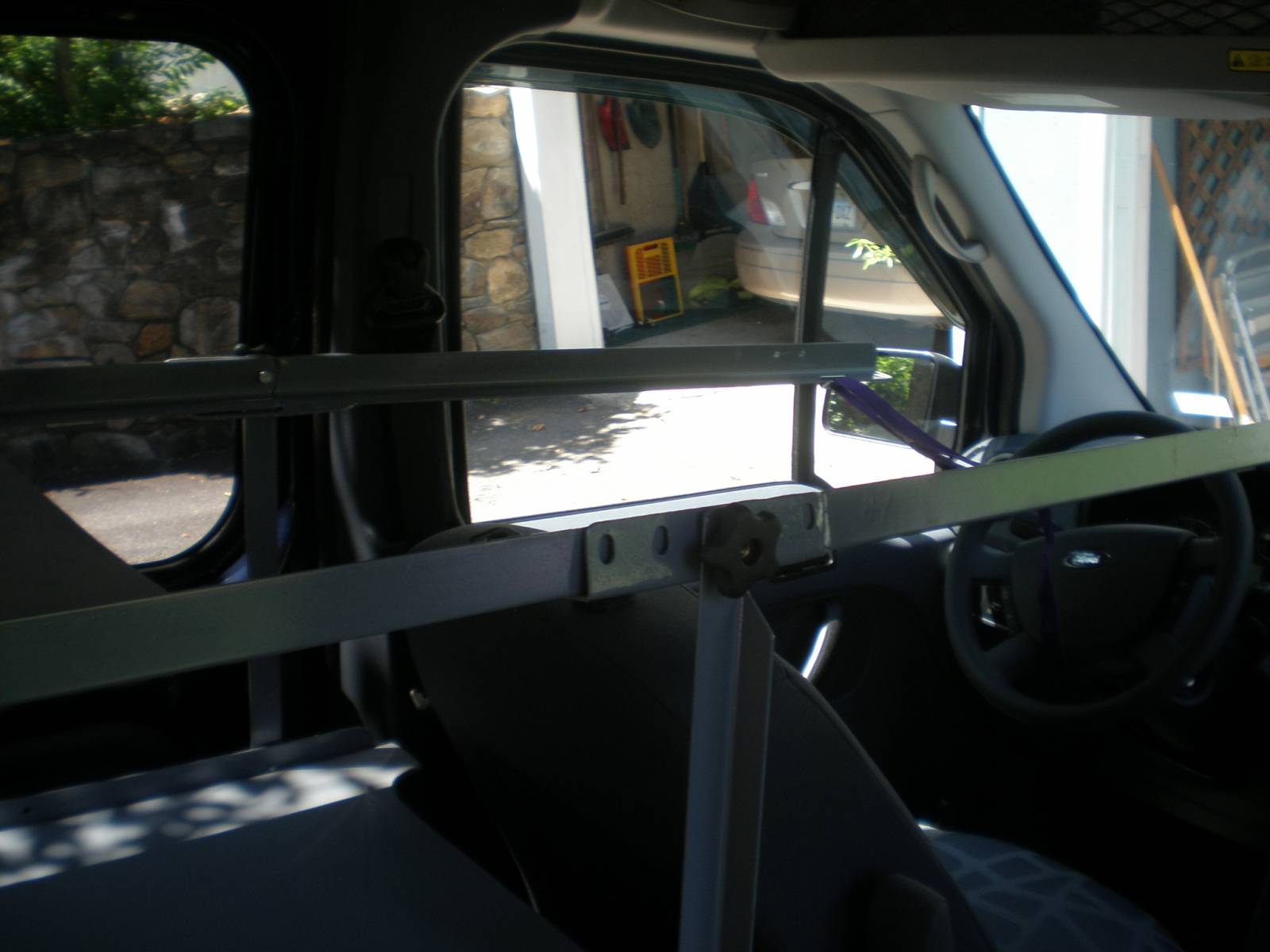

Looking to drivers side the vert support can be seen with a close up of the sissor hinge support. To keep the unit stable for laterial movement the driver side seat belt bracket is lowered onto the side channel of the upper driver side bed rail and a purple strap is inserted into slots at the end of the rails that will keep passenger side rail from opening wider that the plywood platform.

From the album:

Transit Conversion

  • 34 images
  • 0 comments
  • 2 image comments
